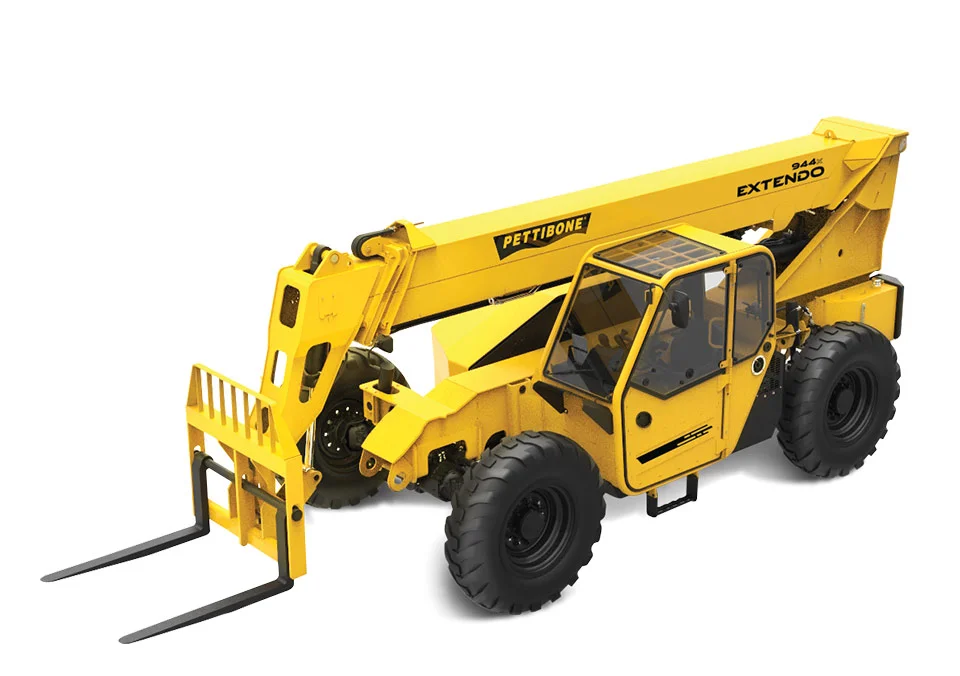

Pettibone Extendo 944X










ENGINE

The 74-horsepower Cummins QSF3.8 Tier 4 Final diesel engine features a DOC muffler and requires no diesel exhaust fluid (DEF). Side pod mounting offers easy service access while allowing excellent curbside visibility and ground clearance.





DRIVETRAIN & AXLES

Drivetrain and axles have been optimized to provide greater tractive effort with minimal tradeoff on top end speed.

  • Dana 212 Series high steer axles provide excellent tractive effort.

  • Tight steer angle capability provides efficient turning radius.

  • Dana VDT12000 Powershift transmission offers 3 speeds, forward and reverse.

  • Full time 4-wheel-drive with limited-slip front axle differential.





BOOM CONSTRUCTION

Newly designed boom with formed boom plates offers greater strength with less weight.

  • Boom deflection minimized for better control and accuracy placing loads.

  • Boom overlap nearly doubled to provide smoother operation and reduce contact forces on wear pads.

  • Fastener-less wear pads simplify service.

  • Bottom-mounted external extend cylinder significantly reduces load on wear pads; cylinder location also provides better service access to internal boom components.

  • Compression tilt design allows for a smaller bore cylinder with same tilt force.

  • Single extension chain eliminates the need to balance dual chains.





CAPACITY & REACH

The 944X has a capable 9,000-pound load capacity rating. It achieves forward reach up to 30 feet and a maximum lift height of 44 feet, 6 inches.





HYDRAULICS

The Extendo's hydraulic circuit delivers exceptional controllability, efficiency and cycle speeds.

  • Cylinder cushioning dampens the end of strokes – both extending and retracting – to prevent hard, jarring stops and avoid both wear-and-tear and potential load spills.

  • Single lift cylinder provides operator with clear sight lines.

  • Twin lines for tilt and auxiliary plumbing.





STEEL TANKS

Damage-resistant, all-steel fuel and hydraulic tanks. Fuel tank provides ample fuel volume for a full day's work at 100% load.





OPERATOR STATION

The operator cab includes ergonomic seat, pedal, joystick and steering wheel positions. Available as an open canopy or enclosed cab, it features an all-steel interior with water-resistant components for easy washdown.

  • New analog/LCD gauge cluster.

  • Enhanced climate control system.

  • Split door design allows upper half to lock in the open position.

  • Flat, bolt-in glass can easily be removed or replaced.

  • Openable rear window improves air flow while keeping cab dry.

  • Lockable storage area under seat for manual, gloves and tools.





ELECTRICAL

  • Split-system electrical panels allow for easier service of individual circuits.

  • Heavy-duty bright LED lighting

  • Weather-sealed connections

  • USB accessory plug in cab

  • 12-volt accessory plug in engine bay





 SERVICE

  • Easy access to all filters and fluid level indicators.

  • Lockable fuel-fill in clean, accessible location.

  • Inside of boom easily accessible for service.

  • Non-tensioned boom hoses offer long service life.
