M-Series

The M-Series is the workhorse of Hydro Mobile’s mast climbing work platforms. It is the perfect tool for any facade work that requires high capacity, whether for new construction or restoration. With a load capacity of 22,000 lb, and a climbing rate of 3' per minute, it is perfect for masonry (brick or block), stone or marble facade work from 20' to 250' in height.




M Series 24' Unit

It is perfect for masonry (brick or block), stone or marble facade work from 20' to 250' in height.

M SERIES 24' UNIT
  • Platform dimension (transport): W x L x H: 7' x 24' x 4'

  • Min./Max. platform length: 24' / 64'

  • Maximum load capacity: 22,000 lb at 24' / 16,600 lb at 64'

  • Maximum height: Up to 250' nominal

  • Tie distance: 20' (30' if pre-installed)

  • Free-standing: 35' with extended telescopic outriggers

  • Climbing speed: 3' per minute

  • Drive system: Hydraulic Ratchet Drive

  • Operating system: 3.5 " hydraulic cylinders @ 2800 psi

  • Engine type: 9 HP gasoline engine with electrical starter

  • Total platform weight: 7300 lb

  • Mast section: 16" x 16" x 60" | 235 lb per section

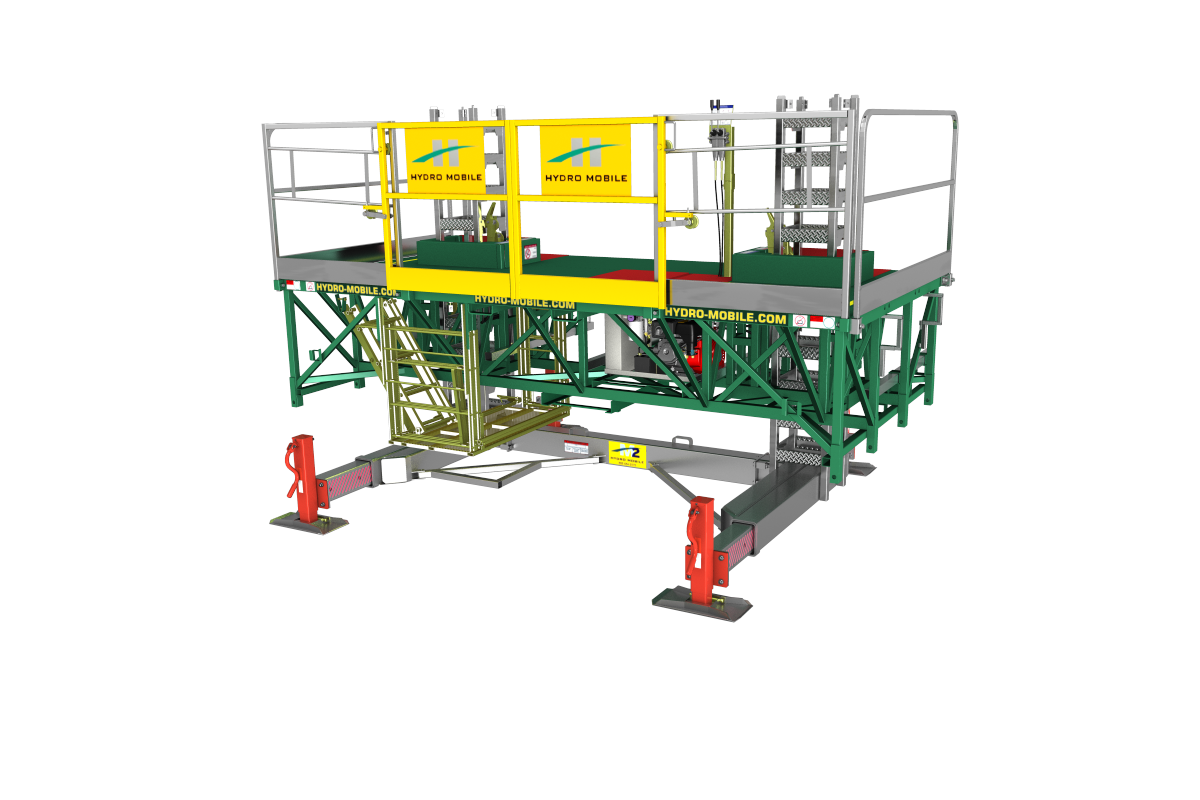

M Series 14' Unit

This platform combines power with smaller size to allow work to be undertaken in more confined spaces. Several unit scan be used for added flexibility. And its smaller size makes it highly portable.

  • Platform dimension (transport): W x L X H: 7' x 14' x 4'

  • Min./Max. platform length: 14' / 34'

  • Maximum load capacity: 22 000 lb at 14' / 19,300 lb at 34'

  • Maximum height: Up to 250' nominal

  • Tie distance: 20' (30' if pre-installed)

  • Free-standing: 25' with extended telescopic outriggers

  • Climbing speed: 3' per minute

  • Drive system: Hydraulic Ratchet Drive

  • Operating system: 3.5" hydraulic cylinders @ 2800 psi

  • Engine type: 9 HP gasoline engine with electrical starter

  • Total platform weight: 6000 lb

  • Mast section: 16" x 16" x 60" | 235 lb (107 kg) per section

M Series Accessories

Hydro Mobile offers a range of accessories to help make your project more profitable by going faster and insuring the security and comfort while reducing fatigue of the workers. For special projects, we even create custom-made accessories.


Hoist System


Why go to the expense of renting a crane when our hoist system can do the job for you? Its 250' anti-twist cable handles full pallets of block or brick. Its hydraulic power pack delivers 65' per minute lift speed. Folding arches make for easy transport and storage.

  • Load capacity: 4,000 lb of 3/8" of cable

  • Travel speed: 65' per minute controlled by a 2-speed hand-held box

  • Winch type: Pull Master - 250' of 3/8" steel cable

  • Load capacity: 4000 lb

  • Hydraulic system: HD hydraulic pump operates at 2000 psi, full modulating control valve with individually adjustable pressure

  • Total weight: 2500 lb

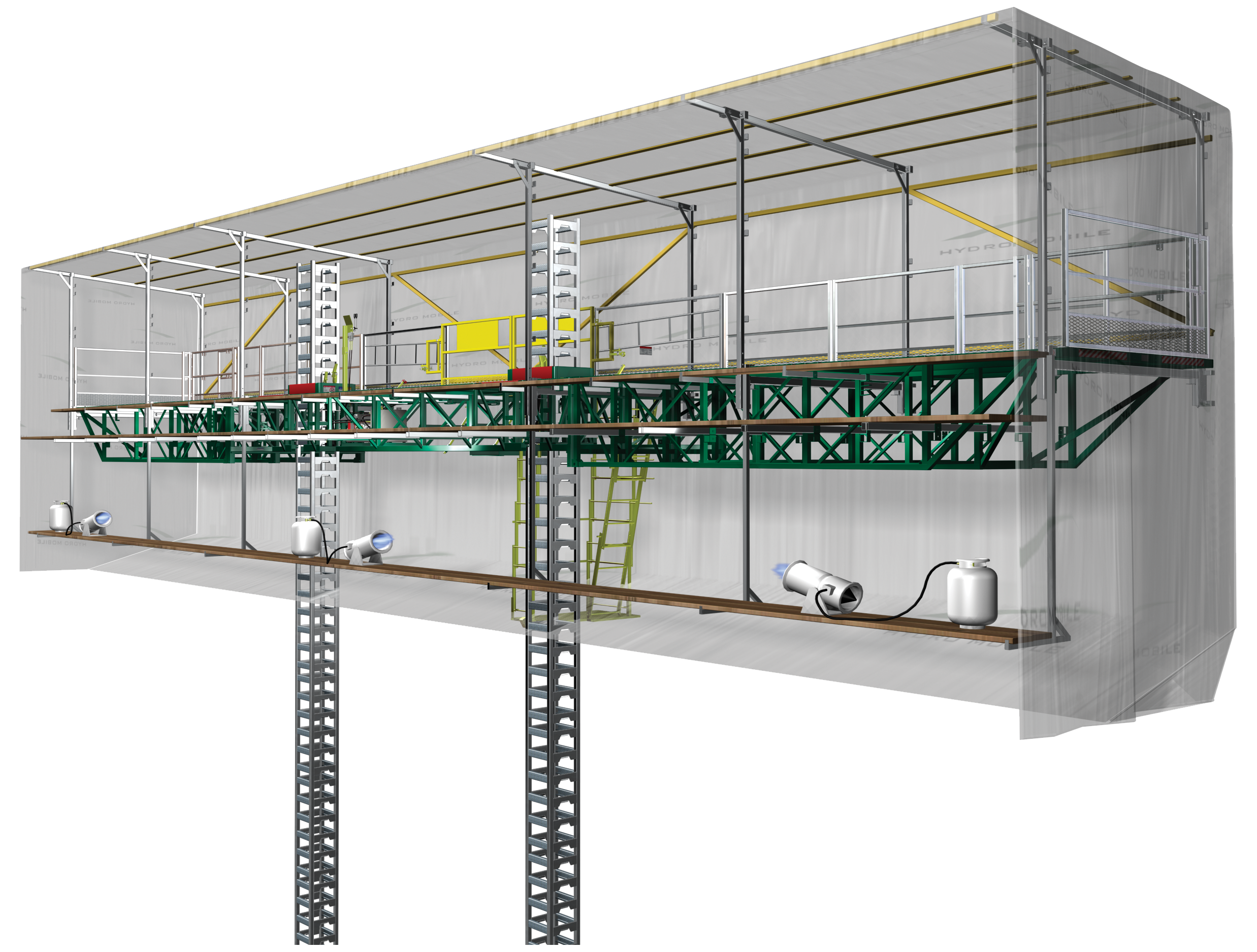

Our weather protection system is perfectly designed to accommodate both top and bottom platform requirements. Most importantly, it keeps workers comfortable in all kinds of weather. And it can even be used to protect against falling debris.

For more information/specifications about the weather protection system, please consult the operator's manual.

Weather Protection
