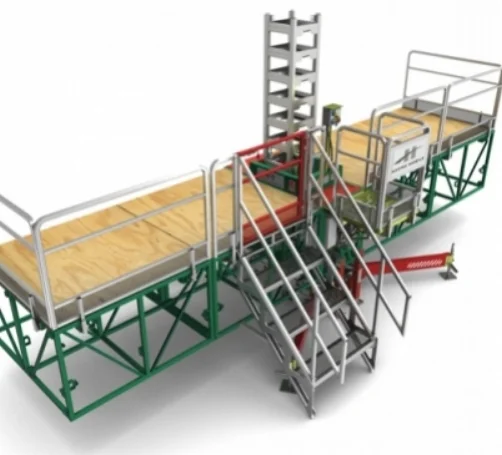

P-Series

The P-Series mast climbing platform is the perfect tool for smaller jobs that require high capacity or for restrained work area where most  climbing work platforms can't fit, whether for new construction or restoration. With its high load capacity (6,000 lbs at 28' length) to size ratio, it is ideal for multi-residential or small commercial masonry jobs between 15' and 100' in height. The P-Series mast climbing work platform offers an attractive price/performance ratio. It is extremely portable and set up is both easy and very quick. In addition, this work platform is adaptable to angle configurations and boasts a 10 feet per minute climbing rate. By reducing labor costs and set-up time, the P-Series can contribute to an estimated 30% increase in productivity.



The single mast set-up has a load bearing capacity of 6000 lb at the maximum 27'5" set-up length, very high for a platform of this size.

  • Platform dimension (transport): W x L x H: 42" x 76" x 76" (fully assembled)

  • Min./Max. platform length single mast: 7'5" / 27'5"

  • Min./Max. platform length twin mast: 63'4" / 83'4"

  • Maximum load capacity - single mast: 7500 lb at 7'5" / 6000 lb at 27'5"

  • Maximum load capacity - twin mast: 11,450 lb at 63'4" / 9750 lb at 83'4"

  • Maximum height: Up to 250' without prior authorization from Hydro Mobile

  • Tie distance: Up to 20'

  • Free-standing: 20' with base outriggers extended at a 30 degree angle

  • Climbing speed: Up to 7' per minute

  • Drive system: Hydraulic Ratchet Drive

  • Operating system: 3.5" hydraulic cylinders @ 2800 psi

  • Engine type: 9 HM gasoline engine - with electrical starter

  • Safety device - Emergency descent: Electrical independent control descent

  • Total platform weight: 2550 lb (fully assembled)

  • Mast section: 16" x 16" x 60" | 235 lb per section

  • Base dimension + weight: 36" x 67" x 72" | 1130 lb
